M.V TAQWA ADAM
The M.V. TAQWA ADAM is a 37-meter AHT designed by Conan Wu & Associates Pte Ltd and built by Shin Yang Dockyard S/B in 2009. It is classified by NKK (Nippon Kaiji Kyokai) and flies the Malaysian flag.
Technical Specification:- Official Number: 333133 |
|
Year Built: 2009 |
|
| Principal Particulars | Tank Capacity | ||
Length B.P: 35.00m |
Fresh Water: approx. 80m² Fuel Oil: approx. 280cm² Detergent: 3m² Lub Oil: approx. 10m² |
||
| Performance | Accomodation | ||
Bollard Pull: 46 ton |
Cabin: 2 x 1 berth cabins: 2 men 2 x 2 berth cabins: 4 men 2 x 4 berth cabins: 8 men Total 14 men |
||
| Navigation AIDS | Communication | ||
| Radar: Model Furuno Radar 1832-N34 Echo Sounder: Furuno Echo Sounder FCV-667 Autopilot: Comnav Autopilot Gyro Compass: Samyung Navtex receiver SNX-300 GMDSS - Comply Area 1 + 2 + 3 *Comply with SOLAS 74/78 |
VHF/FM: Samyung VHF DSC STR 6000A HP/SSb: Samyung SSB DSC SRG-1150Dn x 2 units Walkie Talkie: 3 x Samyung Walkie Talkie STV 160, -Comply with Solas 74/78 |
||
| Fire-Fighting Equipment | Machinery & AUX Machinery | ||
| ½ FIFI water/1 foam monitors with 2 remote operated monitor-FFS600/150CB | Main Engine BHP: 2 x 1800 bhp Make & Model: 2 x KTA 50-M2 Cummins, USA Propulsion: Fixed Pitch Propeller Generator: 2 x 150 kW, Cummins 6CTA8.3-D (m), · Walkie Talkie: 3 x Samyung Walkie Talkie STV 160, 134 kwm/180BHP continuous Bow Thruster: 1 Unit Model HRP3001, 5.0 Tons Engine Driven |
||
| Towing / Anchor Hadling Winch | Fire Protection System | ||
| PLIMSOL First Layer: 60 ton Brake holding force: 150 ton Drum Capacity: -Upper Drum: 50mm Diameter x 900m Length -Lower Drum: 50mm Diameter x 150m Length Stern Roller: 300 Ton Capstan: 1 x 5 Ton |
Engine room fixed Co2, flooding system, accomodation - smoke & fire detection system & insulated ceiling & paneling of class approved |
||

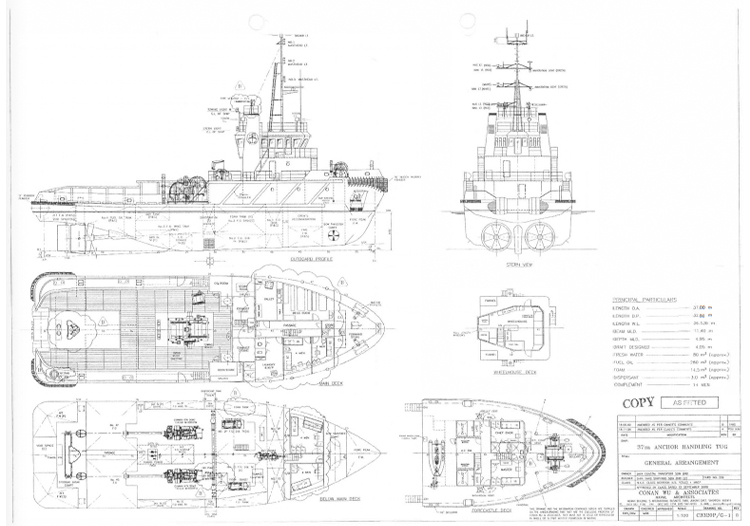

 Click to enlarge |
|||
